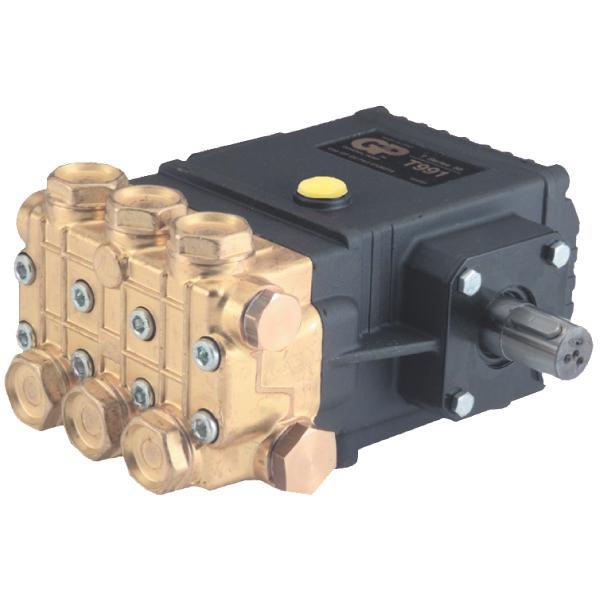

TSS1021 5.6 1700 6.4 8.5 1450 Gas flange Triplex Plunger Replacement Pressure Washer Pump

TSS1021 5.6 1700 6.4 8.5 1450 Gas flange Triplex Plunger Replacement Pressure Washer Pump

Regular price
$559.26
Sale price
$559.26
Shipping calculated at checkout.
Quantity must be 1 or more


Solid shaft with pump rails 24mm shaft 1/2” BSP-F inlet, 3/8” BSP-F outlet

FEATURES:

  • Manifold with fine thread valve caps
  • The preferred pump frame in the pressure cleaning industry
  • Forged brass manifold with an exclusive lifetime warranty
  • Large capacity, die-cast , anodized aluminum oil-bath crankcase
  • Over-sized connecting rods for maximum life
  • Heavy duty tapered roller bearing
  • Solid ceramic plungers with continuously lubricated packings
  • Unitized stainless steel inlet and discharge valves
  • Designed for suction applications

SPECIFICATIONS:

  • Maximum volume: 4.5 and 5.6
  • Maximum Pressure: 3500 and 1700 PSI
  • Maximum Pump speed: 1125 RPM and 1450 RPM
  • Maximum inlet pressure: 125 PSI
  • Plunger Stroke: 16mm
  • Crankcase oil capacity: 40.6 oz.
  • Maximum Temperature: 165 F.
  • Inlet Port: 1/2" FPT
  • Discharge Port: 3/8: FPT
  • Shaft diameter: 24mm
  • Weight: 32 lbs.
  • Dimensions: 12.2" x 9.2" x6.9"
