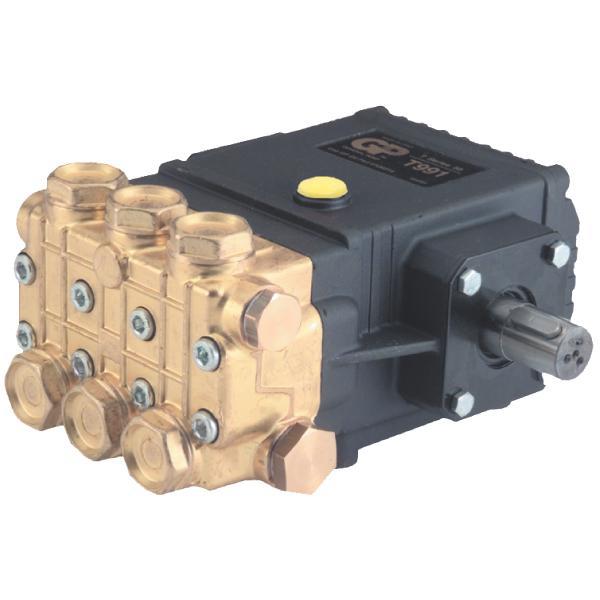

T9951 3.5 1500 3.0 4.0 1750 Gas flange Triplex Plunger Replacement Pressure Washer Pump

T9951 3.5 1500 3.0 4.0 1750 Gas flange Triplex Plunger Replacement Pressure Washer Pump

Regular price
$456.06
Sale price
$456.06
Shipping calculated at checkout.
Quantity must be 1 or more


Solid shaft with pump rails 24mm shaft 1/2” BSP-F inlet, 3/8” BSP-F outlet

T SERIES 47S

FEATURES:

  • Forged brass manifold with an exclusive lifetime warranty
  • Die cast, anodized aluminum oil bath crankcase
  • Solid ceramic plungers with continuously lubricated packings
  • The original InterPump unitized stainless steel Kit 1 inlet and outlet valves
  • Standard 24mm soid shaft for pulley mounting
  • Flex coupling and bell housing available for direct drive
  • Ideal for all general cleaning/washing applications

SPECIFICATIONS

  • Triplex Plunger Pump
  • Maximum Volume: 3.5 GPM
  • Maximum Discharge Pressure: 1500
  • Maximum Inlet Pressure: 125 PSI
  • Maximum Pump Speed: 1750 RPM
  • Minimum Horsepower Requirements: 3.6 bhp (5.4 hp gas engine)
  • Bore: .787 (20mm)
  • Stroke: .335" (8.5mm)
  • Crankcase Capacity: 15.2 oz. nondetergent SAE 30W oil.
  • Maximum Fluid Temperature: 165 F.
  • Inlet Port Thread: 1/2" FPT
  • Discharge Port Thread: 3/8" FPT
  • Shaft Diameter: .945" (24mm)
  • Dimensions: 9.3" x 8.3" x 5.4"
  • Weight: 18.7 lb.

Lubrication: fill the crankcase to the dot on the oil gauge window pe specifications with SAE 30W oil. Change oil after 40 hour break-in period, then every three months or 500 hour intervals thereafter.
