Clemco 28412 B/Mach Classic Port 3 Cubic Foot 1" pkg w/ MQV
Clemco 28412 B/Mach Classic Port 3 Cubic Foot 1" pkg w/ MQV
Clemco 28412 B/Mach Classic Port 3 Cubic Foot 1" pkg w/ MQV

Clemco 28412 B/Mach Classic Port 3 Cubic Foot 1" pkg w/ MQV

Regular price
$5,760.00
Sale price
$5,760.00
Shipping calculated at checkout.
Quantity must be 1 or more

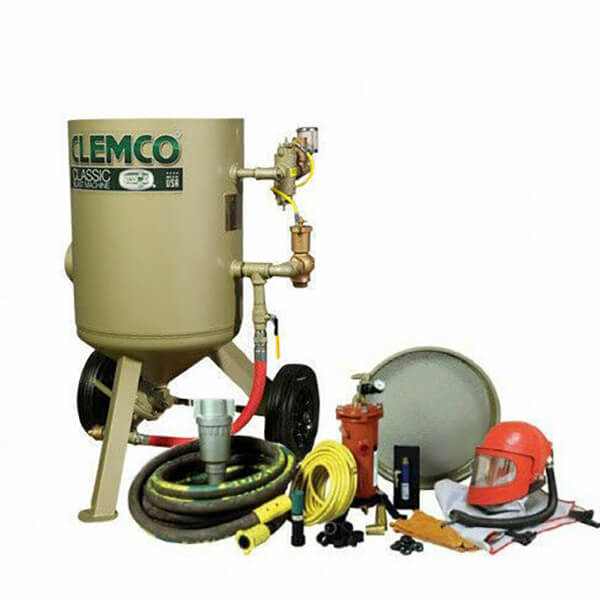

B/Mach Classic port, 3 cf pkg w/MQV

Classic Clemco – Tough, Reliable, Quality Blast Machines

  • Semi-elliptical head for larger storage of abrasive.
  • Pop-up valve umbrella (optional) relieves load pressure, when hopper is in place. Flexible pusher line guarantees air flow without pressure loss caused by elbows; and eases valve replacement.
  • Chrome-plated forged brass ball valve with brass body for durability and long service life.
  • Fast, safe TLR remote controls with solid brass valves built for years of dependability.
  • Self-cleaning exhaust muffler greatly reduces bleed-off noise.
  • 45° abrasive flow into air stream – the natural way to uniformly mix air and abrasive. Eliminates premature wear found in 90° systems.
  • A tough stainless steel plate meters precisely.
  • Clean-out provides access to foreign matter.
  • Conical 35° bottom ensures total use of abrasive and uninterrupted abrasive flow. Heavy-gauge construction pressure vessel fabricated for rugged field service.
  • Built to ASME standards. Most models registered in most Canadian provinces.
  • Large 6” x 8” inspection door for easy access to inside.
  • Urethane-coated pop-up valve with external sleeve for long life and fast pressurization

The Manual Quantum valve handles all types of media; minerals, slags, and metallic. Its design allows for precise metering and easy maintenance. The Quantum fits machines from 2-cubic feet to 20-cubic feet capacity.

MQV Manual Metering valve complete ....................22845

(*)Service Kit Quantum Metering segment .......22854
(see * on drawing)
1. Adaptor flange w/insert........................21314
2. Screw, 3/8-NC x 1” socket head ...........22655
3. Lower body..................22621 57.00
4. Inspection plate...........22620 20.50
5. Screw, 1/4-NC x 3/4” hex head cap, .............03052
6. Wing nut, 1/4-NC ........03113
7. Housing, knob .............22761
8. Nut, knob housing.......22762
9. Metering plate and shaft................22763
10. Metering screw............22764
11. Knob, adjustment ........22766
12. Screw, 5/16-NC x 3/4” socket head ...........22767
13. Wye, 1-1/4”..................01818
14. Nipple,1-1/2” x 2” ......01840
15. Nipple, 1-1/4” x 5-1/2”........................01874 1
(-) Conversion kit:  Quantum rack & pinion to knob ............ 22841

Manual Quantum Valve
