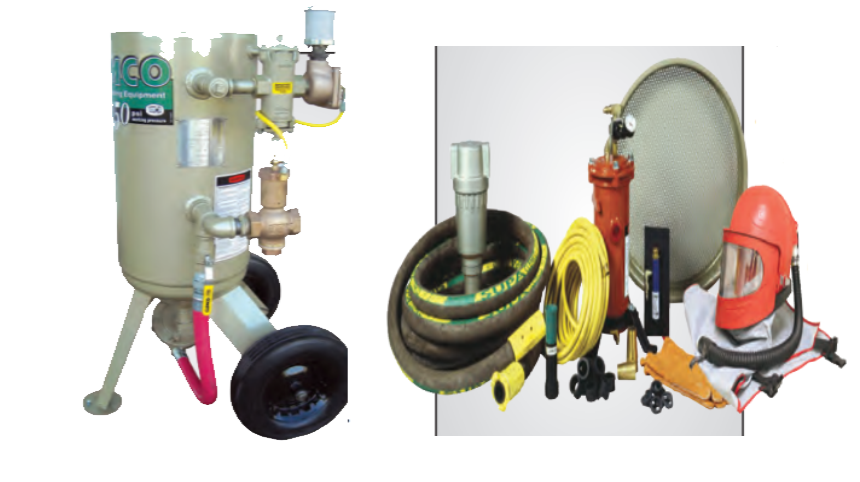

Clemco 00916  6 Cubic Foot Blast Machine Packages with 1-1/4” piping & Flat Sand Valve - Apollo HP SaFety Gear
Clemco 00916  6 Cubic Foot Blast Machine Packages with 1-1/4” piping & Flat Sand Valve
Clemco 00916  6 Cubic Foot Blast Machine Packages with 1-1/4” piping & Flat Sand Valve , Apollo HP SaFety Gear
Apollo HP SaFety Gear

Clemco 00916 6 Cubic Foot Blast Machine Packages with 1-1/4” piping & Flat Sand Valve - Apollo HP SaFety Gear

Regular price
$7,089.58
Sale price
$7,089.58
Shipping calculated at checkout.
Quantity must be 1 or more


Classic Clemco – Tough, Reliable, Quality Blast Machines

  • Semi-elliptical head for larger storage of abrasive.
  • Pop-up valve umbrella (optional) relieves load pressure, when hopper is in place. Flexible pusher line guarantees air flow without pressure loss caused by elbows; and eases valve replacement.
  • Chrome-plated forged brass ball valve with brass body for durability and long service life.
  • Fast, safe TLR remote controls with solid brass valves built for years of dependability.
  • Self-cleaning exhaust muffler greatly reduces bleed-off noise.
  • 45° abrasive flow into air stream – the natural way to uniformly mix air and abrasive. Eliminates premature wear found in 90° systems.
  • A tough stainless steel plate meters precisely.
  • Clean-out provides access to foreign matter.
  • Conical 35° bottom ensures total use of abrasive and uninterrupted abrasive flow. Heavy-gauge construction pressure vessel fabricated for rugged field service.
  • Built to ASME standards. Most models registered in most Canadian provinces.
  • Large 6” x 8” inspection door for easy access to inside.
  • Urethane-coated pop-up valve with external sleeve for long life and fast pressurization

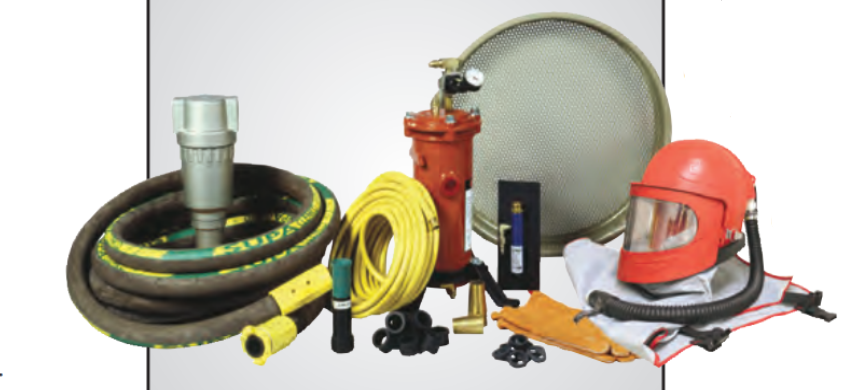

Includes

  • TLR-300 remote controls (includes 10565 RLX handle) 01936
  • Abrasive metering valve FSV 02427
  • 50 ft. X 1-1/4” ID blast hose, coupled 23481
  • NHP-2 Nylon nozzle holder (included in 23481) 04127
  • CQPS-2 nylon quick coupling (included in 23481) 08413
  • Blast hose safety cable 15013
  • 1-1/2” Air filter with manual drain 22363
  • TXP-6 blast nozzle 23525
  • Blast machine screen (optional steel cover) 03099 (02335)
  • Poly all-weather cover 15097
  • Nylon tie (eight included with system) 02195 (each)
  • Apollo 600 HP DLX helmet with Clem-Cool 25194
  • 50 ft respirator hose 04415
  • CPF-20 Breathing air filter with regulator 03578
  • One pair leather gloves 02243
  • One 25-pack helmet outer lens 04361
  • One 5-pack Apollo 600 intermediate lens 24943
  • Two 10-packs quick coupling gaskets 08853 & 00850
  • One 10-pack nozzle washers 91026
  • Abrasive trap screens (six included in system) 02012 (each)

Clemco 00916  6 Cubic Foot Blast Machine Packages with 1-1/4” piping & Flat Sand Valve - Apollo HP SaFety Gear

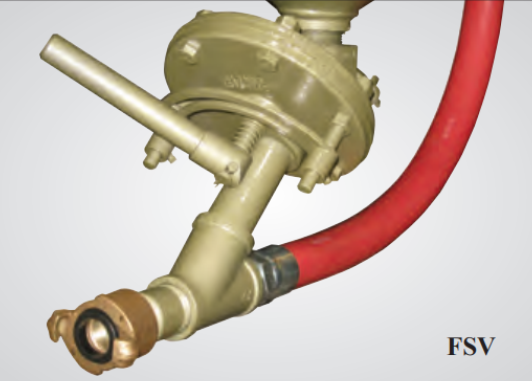

The FSV, an original Clemco design, is the triedand-true work horse of the industry. It is among the most imitated Clemco components. It is standard on machines from 2-cubic feet to 20-cubic feet capacity

(-) FSV metering valve, complete ..................02427

1. Upper body ....................02422
2. Valve ..............................02423
3. Gasket, rubber, 2 required .................02424
4. Disc-stainless .................02425
5. Lower body ....................02426
6. Metering handle, heavy duty ................20498
7. Cap screw, 1/4-NC x 1-1/4” hex head .....03054
8. Wing nut, 1/4-NC ............03113
9. Handle bolt spacer..........02431
10. Valve handle pin .............20246
11. Gauge unit .....................02433
12. Set screw, 1/4-NC  x 1/2” square head ...03080
13. Spring, compression ......01982
14. Stud ................................02436
15. Packing gland ................02437
16. O-ring, 7/8” OD ..............21165
17. Gasket, shaft ..................02439
18. Inspection plate ..............02440
19. Cap screw 5/16-NC x 1” hex head ..........03152
20. Wing nut, 5/16-NC .........03213
21. O-ring ..............................01990
22. Nipple, 1-1/2” x close .....01791
23. Wye, standard 1-1/4” .....01818
24. Nipple, 1-1/4” x 5” ..........01721
25. Nut, 1/2-NC hex .............03511
26. Cap screw, 1/2-NC x 1-3/4” hex head .....03455
27. Washer, 1/4” flat .............03116
28. Hitch pin .........................20245
