C.A Technologies OC14-CH-411 – C14 Air Assisted Airless Outfit / Cougar / Hopper Feed

C.A Technologies OC14-CH-411 – C14 Air Assisted Airless Outfit / Cougar / Hopper Feed

Regular price
$2,589.95
Sale price
$2,589.95
Shipping calculated at checkout.
Quantity must be 1 or more

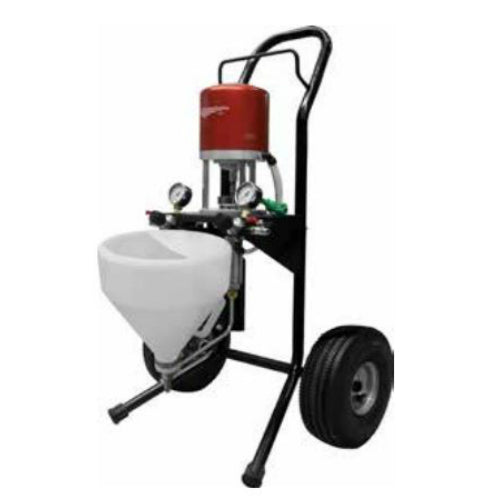

OC14-CH C14 Air Assisted Airless Outfit / Cougar. The OC14-CH Air Assist Airless PEAK Performance Series pump (replaces the Kremlin Intensive Airmix 14.10 pump, Binks MX412, Graco Merkur ES 15:1) from C.A.Technologies is an all stainless 14:1 ratio pump for production fine finish spraying of wood or other fine finish applications.The air motor incorporates a unique magnetic no stall valve design. This simple direct acting valve is also resistant to icing, has a long life carbon fiber cylinder and integrated noise suppression design for quiet operation. The fluid section is all stainless featuring a non-contact pump tube that never wears out. Also featured is a cartridge-style piston seal and guide for quick field replacement. Unit has a large capacity solvent cup and 360 degree fluid inlet/outlet orientation.

PROUDLY MADE IN USA.

Specifications:

  • Pump Ratio: 14:1
  • Max Air Pressure: 107 PSI
  • Max Fluid Pressure: 1500 PSI
  • Fluid Volume: 1/3 GPM – supports one gun up to .024 orifice
  • 25 ft. x 1/8 in. Fluid Hose
  • 25 ft. x 3/16 Air Hose
  • Includes Cougar Spray Gun

Low 6 CFM air consumption
Stationary magnet design
Enclosed solvent cup eliminates environmental contamination.
Sight gauges make it easier for checking and refilling lubricant levels.

Repair Kit Air Motor P/N 10-163
Repair Kit Fluid Section P/N 10-117 (standard packing)
Repair Kit Fluid Section P/N 10-117-V (chevron packing)
