Binks 183G 2 Gallons ASME Galvanized Carbon Steel Pressure Tank - Double Regulated w/ Extra Sensitive Regulator & No Agitator

Binks 183G 2 Gallons ASME Galvanized Carbon Steel Pressure Tank - Double Regulated w/ Extra Sensitive Regulator & No Agitator

Regular price
$2,139.00
Sale price
$2,139.00
Shipping calculated at checkout.
Quantity must be 1 or more

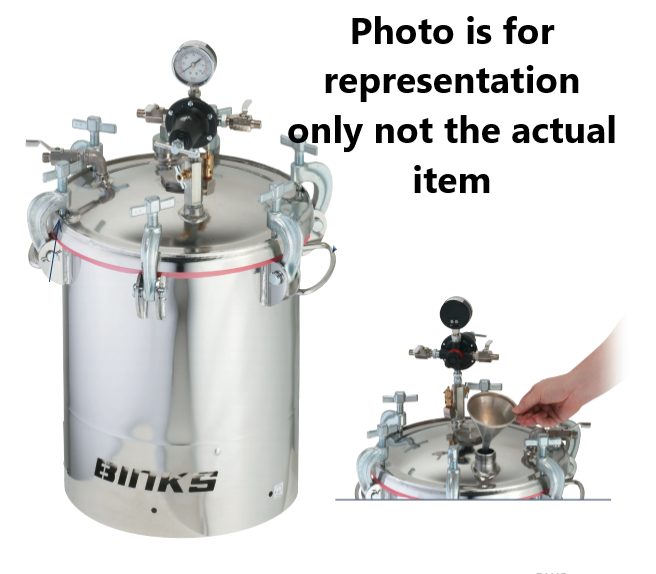

Binks 2 Gallon Pressure Tank, Galvanized,  Double Regulated w/ Extra Sensitive Regulator & No Agitator

The Binks pressure pot is 2 gallons & features a stainless steel construction. This is appropriate for solvent based materials and is ASME rated. Disposable liners are available for easy cleaning.

• Binks A.S.M.E. code tanks meet OSHA regulations when using flammable and combustible materials
• Constructed from heavy gauge steel with forged steel clamps
• Higher pressure rating for heavier materials
• Range offers complete material handling suitability for solvent and waterborne coatings
• Inner liners reduce cleaning time and save coating material

Binks pressure feed containers are used to allow the coating material to be prepared, thinned and conditioned, constantly agitated (if required) and then supplied in bulk to consistently maintain the correct spraying viscosity and pressure.

The Binks range is equipped with easy to operate air regulators (to set the desired fluid outlet pressure), safety pressure relief valves and manual, rotary or oscillating agitation types are available to provide the best quality agitation.

Binks Pressure Feed Containers are constructed from the highest-grade materials and fully comply with global pressure regulations including PED, ATEX and ASME.

Galvanized Pressure Tanks

Galvanized steel tanks are primarily used with non-corrosive materials. Constructed with a heavy pressed steel lid and forged steel clamps, galvanized tanks are equipped with top outlet and bottom outlet plug, which can be adapted for bottom outlet. The bottom outlet is recommended for heavy, viscous materials such as emulsified asphalts, cutback asphalts, rubber compounds, etc.

Max Working Pressure, psi 110 psi
Air Inlet 1/4" NPT (m)
Fluid Outlet 3/8" NPT (m)
Fluid Outlet if using bottom Outlet kit 3/4 NPT / 3/4 NPS (m)
Holds Container Size 1 gal. pail
Internal Volume (Gallon) 2.8
Head Gasket QMS-80-1
Disposable Liner PT-78-K60
Bottom Outlet Kit 183-3000
Inside Diameter 9-1/2"
Inside Height at Center 9-1/2"
Overall Heigth 23-5/8"
Overall Diameter 13-3/8"
