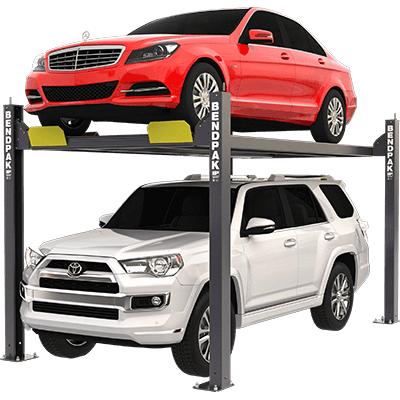

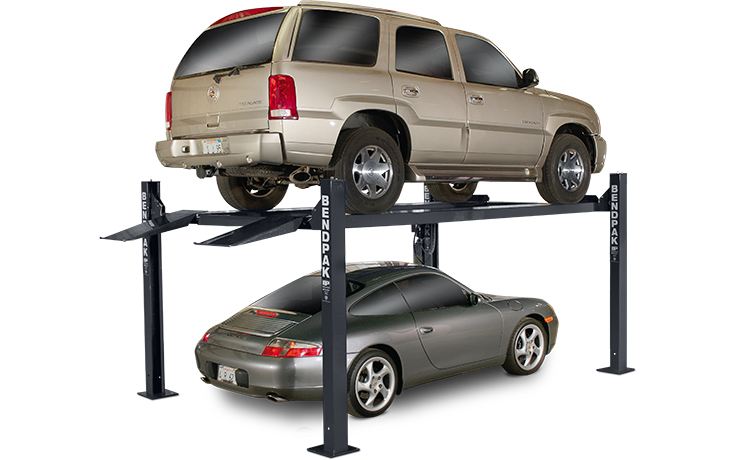

BendPak HD-7P High Rise Narrow Car Lift (7,000-lb. Capacity)

Narrow Spaces Need the HD-7P Four-Post Lift

• The HD-7P does not require a special foundation, nor does it involve complicated installation procedures. It's simply the perfect service lift for shops or garages with limited floor space. This four-post lift is about the size of a typical parking space and fits nicely as a residential or commercial parking lift.
• Get the most out of smaller spaces and compact vehicles with BendPak’s HD-7P. This narrow lift shaves 10.5” off the overall width of a standard-size model, which makes for slightly narrower space between the columns too. If you want a 7,000-lb. capacity four-post lift but can’t sacrifice the precious inches taken up by the wider HD-7W, this is the car lift for you. Store classic cars, racers and compact vehicles comfortably and safely.

Dependable Design

• Four heavy-duty stainless steel lifting wire ropes and a single hydraulic cylinder mounted underneath the runway make this lift the most durable, maintenance-free lifting system on the market.

Heavy-Duty Wire Rope

• The car lift structure is outfitted with four high-quality stainless steel lifting wire ropes that are rated at 14,400 lbs. each. The combined rating of the rope is more than 822% of the entire lift’s maximum lifting capacity! And we make sure it looks tidy too—all wire rope is fully enclosed within the lift structure.

Dual-Hub Wire Rope Sheaves

• BendPak's over-engineered designs reduce stress and fatigue on the axles, sheaves and wire rope. We insist on using dual-hub wire rope sheaves when appropriate because they ensure that a safer, higher-quality product. With BendPak, total peace-of-mind comes standard with every lift.

Multilevel Locking Positions

• Each four-post lift is equipped with multiple lock positions for variable-height parking.  Pneumatic push-button controls will release all four independent safety locks simultaneously .

Electric-Hydraulic Power System

• We incorporate maintenance-free electric-hydraulic power systems into each lift for ultimate dependability, and all controls are conveniently located within close reach.

Automatic Safety Locks

• Aircraft-quality stainless steel and aluminum pneumatic cylinders release all four locks simultaneously with the simple push of a button. The spring-loaded safety locks automatically engage continuously as the lift is raised. For added safety, a secondary lock system acts as a slack-cable device that engages in the unlikely event of wire rope failure.

Large Base Plates

• 10" x 12" base plates provide a solid foundation for the HD-7P. Your four-post lift will be stable and secure for as long as you have it.

Caster Kit

• Optional 4-piece caster kit makes your lift portable, with or without a car situated on the raised platform.

Integrated Design

• For your safety and convenience, the wire ropes, airlines, safety latches and sheaves are all fully enclosed within the car lift columns.

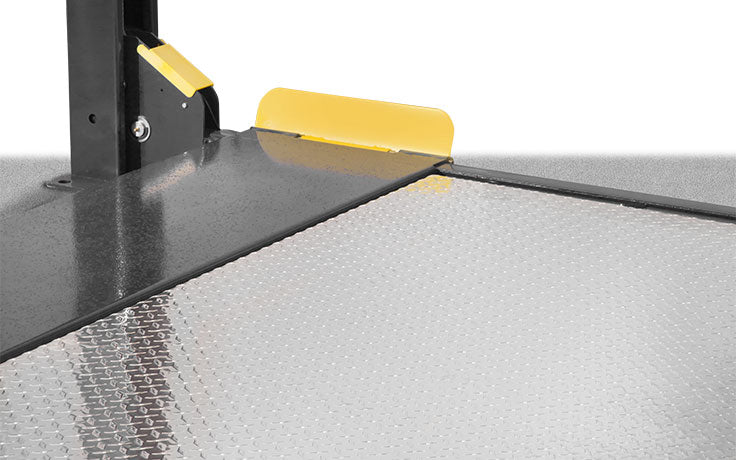

Low-Deck Runways

• The low, 4.5" high runways on this four-post lift are made to accommodate low-bodied sports and race cars, as well as mid-size sedans, light trucks and virtually any vehicle under 7,000 lbs.

Longer Approach Ramps

• The approach ramps were designed a little longer to help when loading low ground-clearance vehicles. It's the little bit that makes a big difference.
