30" Tube Axial Paint Booth Fan Less Motor
30" Tube Axial Paint Booth Fan Less Motor

30" Tube Axial Paint Booth Fan Less Motor

Regular price
Sale price
Shipping calculated at checkout.
Quantity must be 1 or more

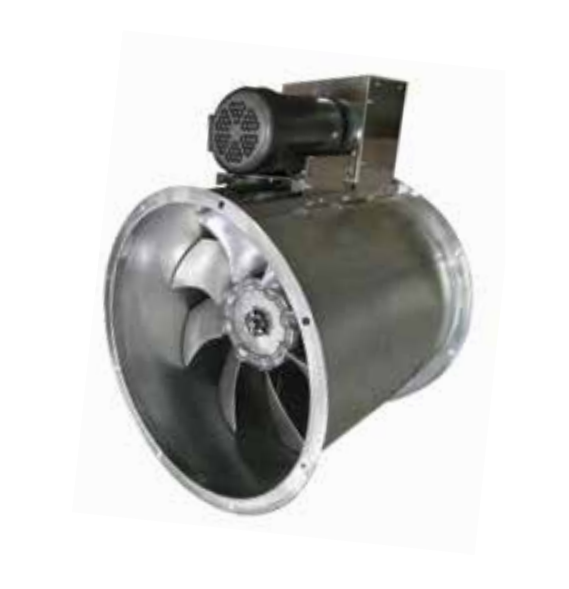

GFA models of GFS’ tube axial fans feature continuously welded housing for an airtight seal. The propellers are non-sparking cast aluminum, providing consistent air velocity at higher static pressures. The universal motor plates allow for adjustable belt tensioning. The bearings are of premium air handling quality, self-aligning and have an L10 life of 40,000 hours. The belt guard provides protection from the rotating pulley, per OSHA requirements.

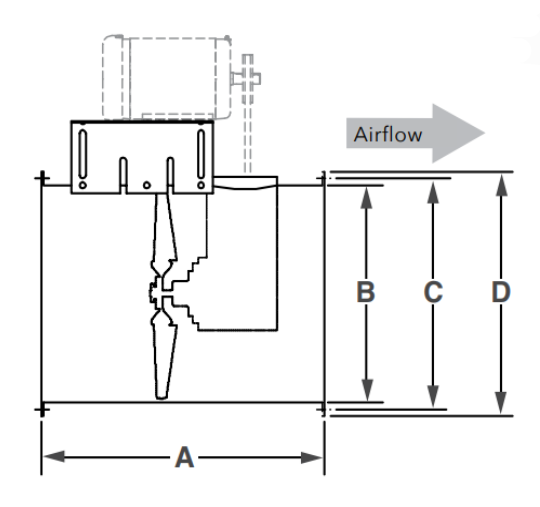

Part no. GFA-30
A. Ring to Ring 30"
B. Inside Dim 30"
C. Mounting Bolt 31 3/4”
D. Outside Dim.  33”

Note: Sound level data given in the fan chart was obtained under laboratory conditions. It is not likely that these results will permit determination of sound power in all site conditions.

Data published in this chart may be used for the following purposes:

  • Comparison of fans that are similar in type and size.
  • Scaling down fan noise from one size and speed to another size and speed.

Depending on the application, configuration of the apr duct, attention characteristics of material used, and acoustical condition, etc., the reduction in dB will vary.

Manufacturer Warranty: 12 Months
