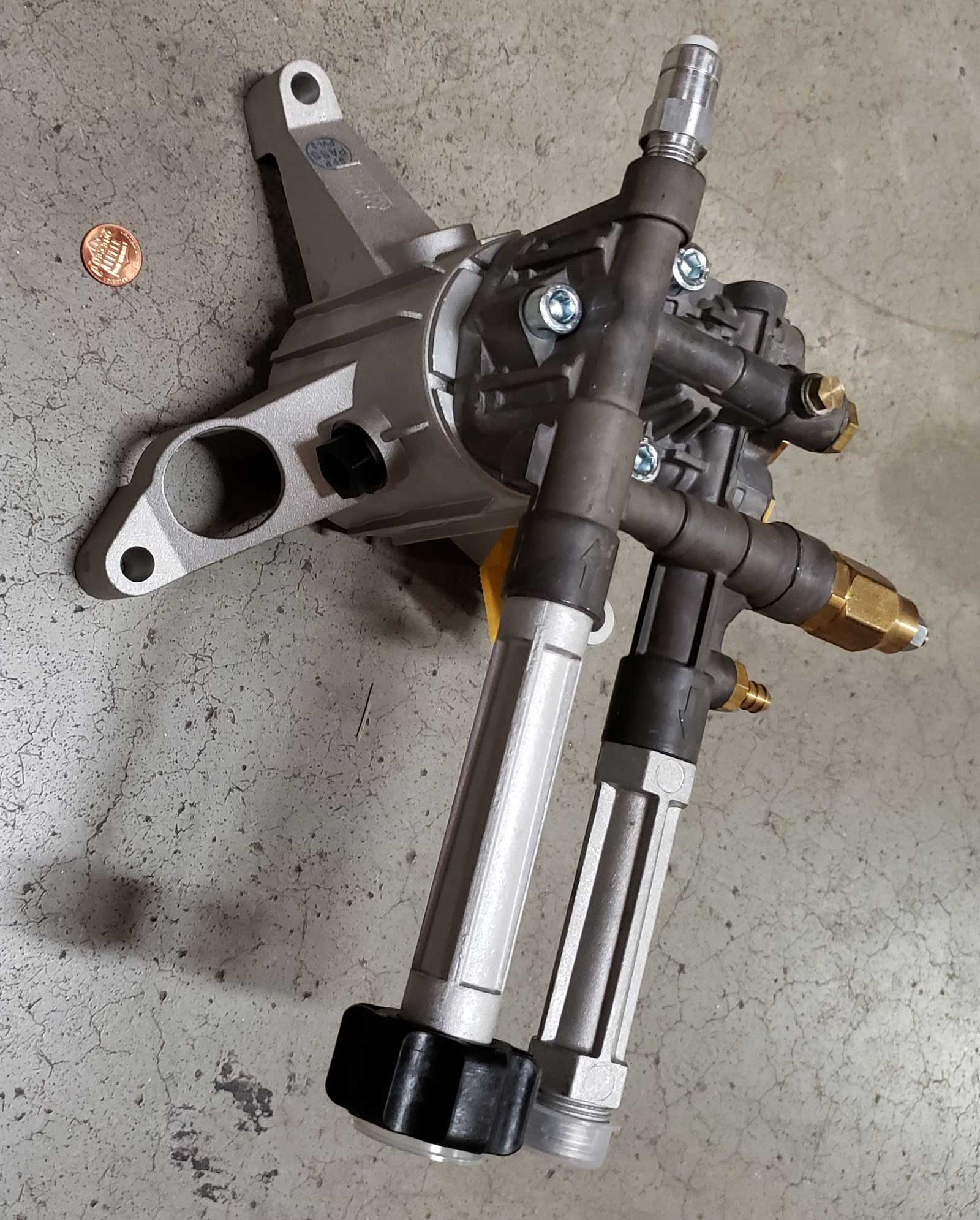

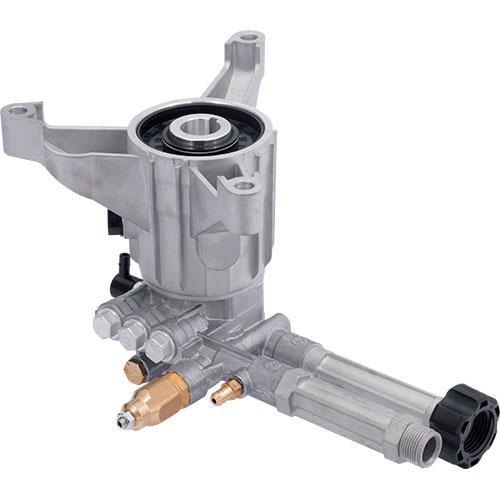

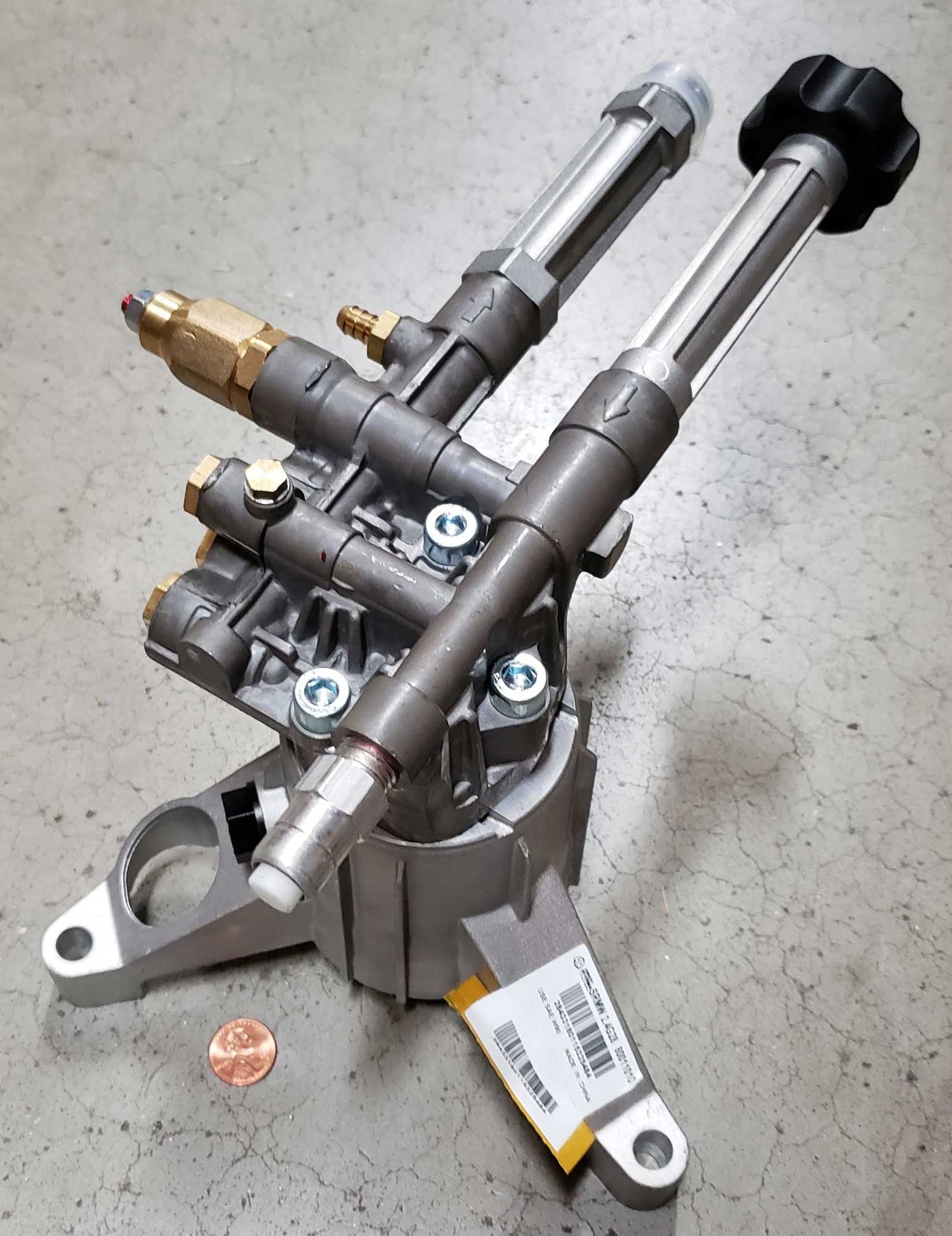

The Annovi Reverberi AR SRMW24G28-EZ triplex residential plunger pump for vertical gas engine driven pressure washers flows 2.2 gallons per minute at 2,800 PSI and 3,400 RPM.
RPM:3,400 Shaft Size:7/8" Max GPM:2.4 Max PSI:2,800 Inlet Thread:3/4" GHA Discharge Thread:22mm x 1.4M

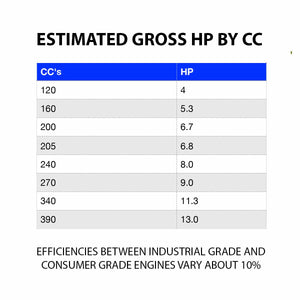

This pump mounts directly on to the engine shaft by using a keyed hollow shaft connection system. The mounting flange provides a convenient connection to most 7/8” diameter shaft vertical gas engines in 4 - 7 HP (reference the cc to HP chart) and fits most OEM carts. This pump includes a built-in pressure control valve, downstream chemical injection system, EZ start valve and thermal relief valve. The seal system uses a high and low pressure seal.
The "S" version has upgraded grade valves
The pump body and head are die-cast aluminum alloy
Pistons are driven by swash (wobble) plate mechanism
The crankshaft is supported by an oversized ball bearing while the swash plate has a thrust bearing assembly
Pistons are tempered stainless steel
Pump head is forged brass
The seal system uses a high and low pressure seal
Max GPM
2.4
Max L/Min
9.1
Max PSI
2800
MaxBar
173
Power EBHP
4.6
Bore Dia mm
12
Motor EBHP
12
Stroke mm
9.0
Crankshaft ID Stamp
3
Inlet
3/4" GHA
Outlet
22mmx1.4 M
Max Temp
140° F
Weight
7.3
RPM
3400
Shaft Size
7/8"
Shaft Version
D
Shaft Type
Hollow
