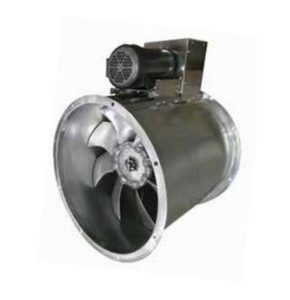

18" Tube Axial Paint Booth Fan w/ 1HP 200-230/460 Volt Three Phase Explosion Proof Motor

18" Tube Axial Paint Booth Fan w/ 1HP 200-230/460 Volt Three Phase Explosion Proof Motor

Regular price
$2,157.12
Sale price
$2,157.12
Shipping calculated at checkout.
Quantity must be 1 or more


18" Tube Axial Paint Booth Fan w/ 1HP Tri-Volt Three Phase Explosion Proof Motor
18" TUBE AXIAL EXHAUST FANS

GFA models of GFS’ tube axial fans feature continuously welded housing for an airtight seal. The propellers are non-sparking cast aluminum, providing consistent air velocity at higher static pressures. The universal motor plates allow for adjustable belt tensioning. The bearings are of premium air handling quality, self-aligning and have an L10 life of 40,000 hours. The belt guard provides protection from the rotating pulley, per OSHA requirements.

Part no. GFA-18
A. Ring to Ring 30"
B. Inside Dim 18"
C. Mounting Bolt 19-1/4"
D. Outside Dim. 20-1/2"


Note: Sound level data given in the fan chart was obtained under laboratory conditions. It is not likely that these results will permit determination of sound power in all site conditions.

Data published in this chart may be used for the following purposes:

  • Comparison of fans that are similar in type and size.
  • Scaling down fan noise from one size and speed to another size and speed.

Depending on the application, configuration of the apr duct, attention characteristics of material used, and acoustical condition, etc., the reduction in dB will vary.

Manufacturer Warranty: 12 Months

PAINT BOOTH MOTORS

All AC, polyphase induction motors are mounted on standard NEMA frame bases and are available in explosion-proof and totally enclosed, fan-cooled types. All motors feature ball-bearing construction, heavy-duty, corrosion-resistant housings and bearing brackets.

Rotors and shafts are dynamically balanced to assure smooth, vibration-free operation. Inner races are locked to shaft outer races to end brackets, reducing endplay and maintaining alignment for V-belt drives. Windings are designed for long, dependable life under adverse operating conditions. Integral rotor fans in enclosed types direct cooling air over windings, reducing noise and prolonging motor life. Conduit boxes have ample hand room for easy accessibility and quick connection of leads.

All motors conform to state and local fire and safety regulations and may be mounted in either a vertical or horizontal position. Motors are rated for exhaust fan units at 1750 RPM

EXPLOSION-PROOF
Featuring a corrosionresistant epoxy finish, as well as a UL listed conduit box, explosion-proof motors are a safety feature for hazardous locations. They are UL listed for Class I, Group D and Class II, Groups F and G
