Clemco BNP 6012 and 7212 Mini Pressure Blast Cabinets (1588246937635)

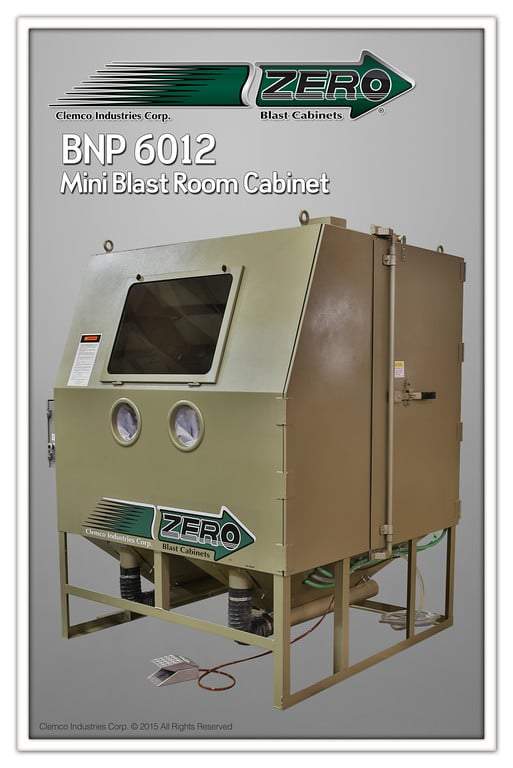

Clemco BNP 6012 and 7212 Mini Pressure Blast Cabinets

Regular price
$41,925.00
Sale price
$41,925.00
Shipping calculated at checkout.
Quantity must be 1 or more


Mini Blast Rooms deliver efficient, affordable media blasting to clean, peen, deburr, or finish parts. For tough cleaning jobs, pressure blasting delivers higher abrasive velocity for greater impact intensity, compared to suction blasting, and can increase your production rate by as much as 300 percent.

BNP 6012 Pressure Cabinets Feature:

Safety

  • Full-length, neoprene-on-fabric gloves resist wear and protect operator.
  • Ceiling-mounted, four-tube fluorescent light fixture with abrasive resistant wire-embedded glass cover cover for extraordinary visibility.
  • Safety interlocks interrupt blasting if either door is opened.
  • Heavy-duty, cam-style latch seals doors tight through years of service.

Productivity

  • High efficiency, 2.0 cubic foot capacity, ASME coded pressure vessel, fitted with 1" ID piping, industrial-quality blast hose and couplings and cabinet integrated controls.
  • Unique Air Logic system (pilot actuated) to maximize air flow to the blast gun.
  • Double-wall, sound-insulated doors, with industrial quality lift-off hinges.
  • 12-gauge steel all-welded construction, with strength breaks to form a rigid, long-lasting cabinet shell.
  • Large 20" x 30" view window.

Convenience

  • Tilt-out window, for tool-free glass changes inminutes.
  • Pressure regulator, gauge, and electric switch mounted within easy reach.
  • Built-in blow-off gun helps keep dust inside the cabinet, not on your floor.

Common Applications

  • Remove rust, mill scale, heat scale, and carbon buildup from metals
  • Strip paint, powder coating, plating, and anodizing from parts for rework
  • Eliminate burrs, parting lines, flashings, and other defects from castings and injection-molded parts
  • Extract residual sand from castings
  • Beautify steel, stainless steel, aluminum, brass and other metals with a uniform matte finish
  • Etch artwork and lettering into glass, stone, plastics, metal and other materials
  • Clean release agents and material buildup from molds

Work chamber for BNP 6012 (58" W x 58 1/2" D x 53" H) and BNP 7212 (69" W x 70 1/2" D x 63" H)
All models are wired three-phase, 60 hz electrics.
Horizontal double swinging doors right side only.
Furnished with 2 cuft blast machine.

Available Literature:
20010 - BNP 6012 & 7212 Mini Blast Room Suction System
20011 - BNP 6012 & 7212 Mini Blast Room Pressure System
23340 - Options Plus for Abrasive Blast Cabinets
